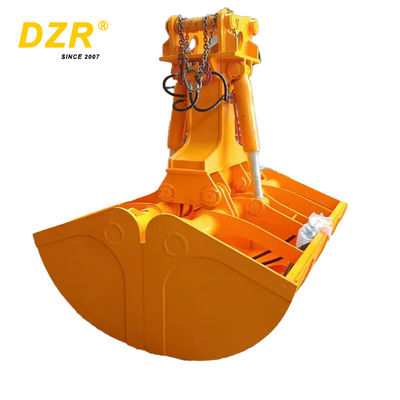

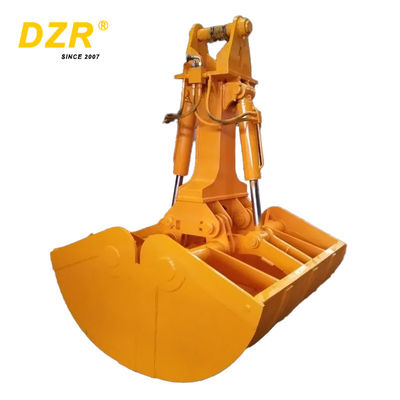

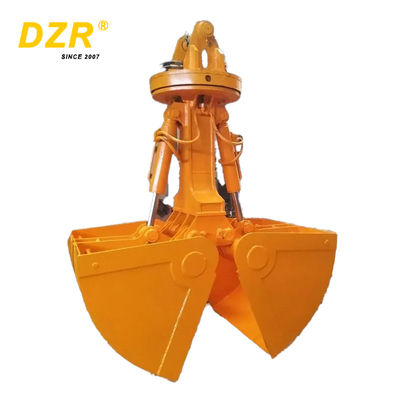

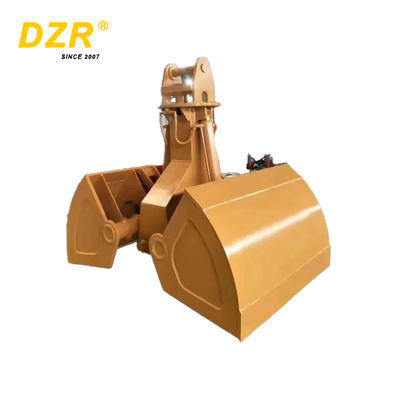

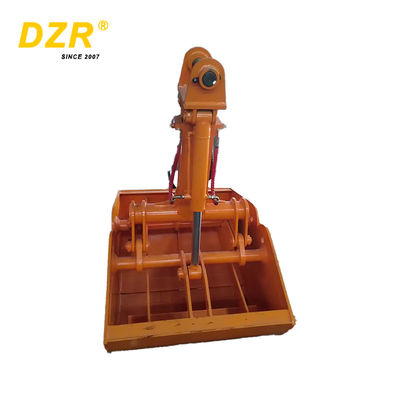

The High Performance Crane Grab Bucket Clamshell is a versatile tool designed for handling bulk materials including coal, mud, scrap, and other loose cargo. Its hinged jaw design provides efficient grasping capability, making it ideal for excavation, dredging, and material handling applications.
Attribute | Value |
---|---|
Product Name | Clamshell Bucket |
Application | Excavator Attachment |
Model Numbers | 6T/8T/10T/12T/20T/30T |
Capacity | 3CUM |
Material | Q345B+NM400+HARDOX+WH60 |
Weight | 2900 kg |
Warranty | 1 Year |
Place of Origin | Fujian, China |
Volume (m³) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 |
---|---|---|---|---|---|---|---|
A | 1421 | 2041 | 2207 | 2207 | 2504 | 2214 | 2617 |
B | 1191 | 1898 | 2028 | 2028 | 2135 | 2097 | 2153 |
C | 1178 | 1997 | 2071 | 1925 | 2138 | 2610 | 2419 |
D | 1676 | 2630 | 2877 | 2630 | 2970 | 3280 | 3345 |
E | 800 | 1000 | 1160 | 1400 | 1740 | 1980 | 2400 |
Weight (kgs) | 878 | 1340 | 1568 | 2300 | 2560 | 2900 | 3100 |
